Motorized wooden bed - GARDENIA

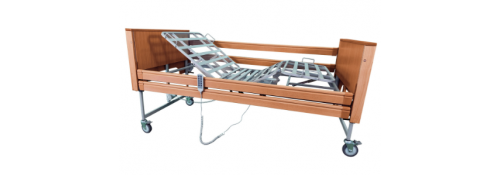

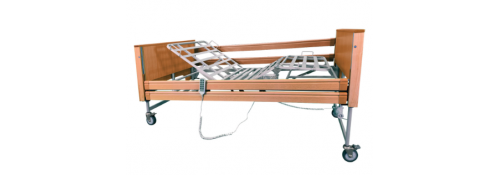

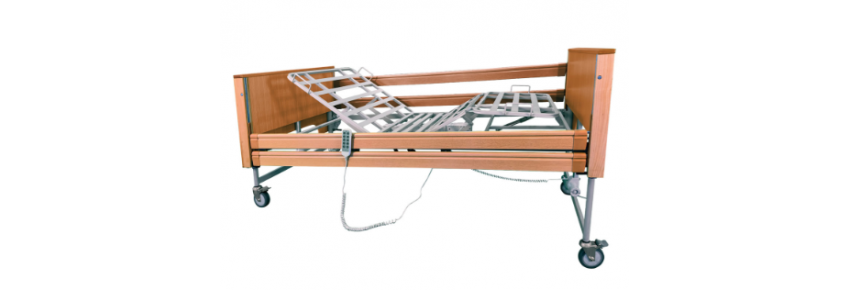

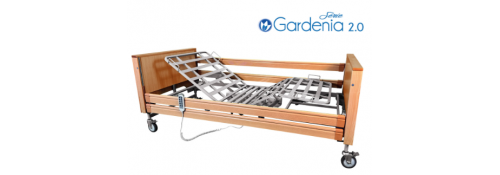

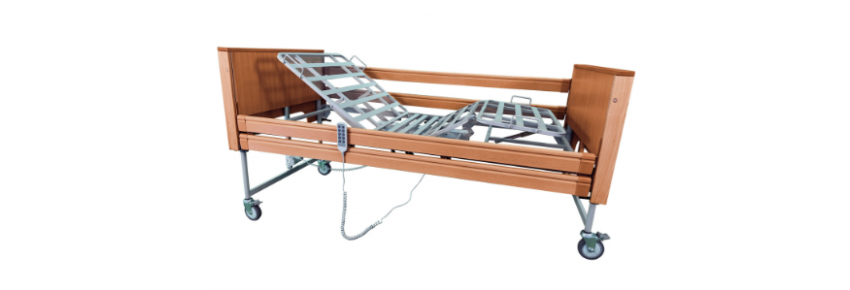

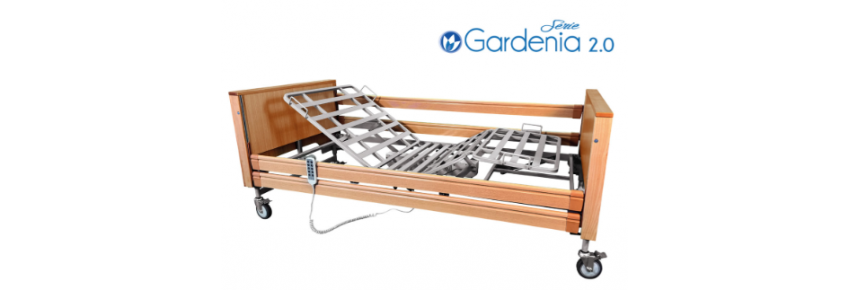

Electric Hospital Bed MP393 - Gardenia 2.0

The Electric Bed MP393 Gardenia 2.0 is a high-quality solution to ensure comfort and safety for patients during hospitalization, designed for use in hospitals, residential settings, and care facilities. Thanks to its advanced design and attention to detail, it is ideal for patients requiring long-term bed rest, providing maximum support and versatility.

Structural Features and Design

Solid Steel Frame: The bed is constructed with a powder-coated tubular steel frame, offering exceptional strength and long-lasting durability. The frame is composed of welded metal slats along the perimeter, providing secure and comfortable support for the patient.

Swivel Wheels: The MP393 Gardenia 2.0 is equipped with four 125 mm swivel wheels, each with a total lock, allowing for easy and safe movement. The total lock ensures that the bed remains stationary and stable when needed.

Elegant and Functional Design: The headboard and footboard are made of solid wood, while the side rails are made of aluminum coated with a wood effect, giving the bed an elegant and discreet appearance while maintaining robustness and ease of maintenance.

Adjustment and Comfort Functions

Adjustable Head and Leg Rests: The head and leg rests can be adjusted via a monoblock electric motor, easily adapting to the patient's needs. The adjustments are smooth and precise, allowing for the selection of the most comfortable and therapeutic position.

Height Adjustment: The bed offers height adjustment through two electric actuators housed in the headboards. These actuators can be controlled either individually or simultaneously, allowing the bed to assume various positions, including:

Flat Elevation

Trendelenburg Position (head lower than feet, useful for circulatory treatments)
Anti-Trendelenburg Position (head higher than feet, useful for respiratory or orthopedic treatments)

Technical Specifications

External Dimensions: 216 x 102 x 127 cm
Bed Frame Dimensions: 187 x 80 cm
Maximum Height at Extremes (Headboard/Footboard): 127 cm
Minimum Frame Height: 25 cm
Maximum Head Rest Angle: 70°
Maximum Leg Rest Angle: 30°
Maximum Load Capacity: 135 kg
Weight of the Bed: 99 kg

Materials Used

Frame Material: Painted steel
Structure and Side Rails Material: Wood (for headboard and footboard) and coated aluminum (for side rails)
