Wi-Fi Handheld Skin Ultrasound

Wi-Fi Ultrasound: Portable, high-res 16/20 MHz skin imaging for dermatology and aesthetic medicine.

  • -10%
  • Save 10%
€6,820.00
€6,138.00 Save 10%
VAT excluded
Quantity

Add to favorites
Add to wishlist


Security policy (edit with Customer reassurance module)



Delivery policy (edit with Customer reassurance module)



Return policy (edit with Customer reassurance module)

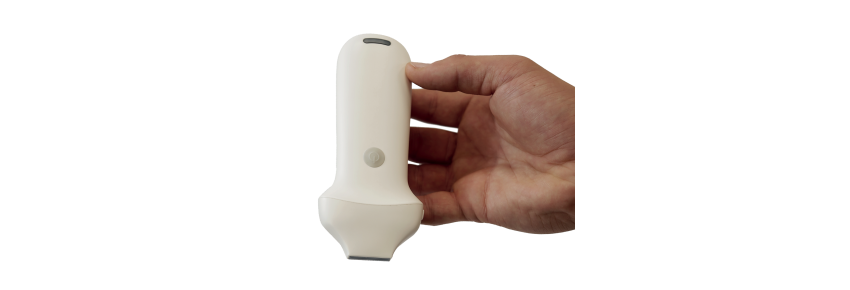

Wi-Fi Handheld Skin Ultrasound – 16/20 MHz (Model M.LTD 990)

The LTD 990 Wi-Fi Handheld Ultrasound is an advanced device for dermatology and aesthetic medicine, designed to provide precise and detailed skin imaging. With a dual-frequency 16/20 MHz probe, it allows clear visualization of both superficial and deeper skin layers, providing essential information for the evaluation of lesions, scars, dermal structures, and post-treatment monitoring.

Compact, lightweight, and fully wireless, the LTD 990 easily connects to iOS, Android, and Windows devices, enabling real-time viewing, storage, and sharing of ultrasound images. Ideal for dermatologists, aesthetic physicians, and skin specialists.

Main features

  • Variable Frequency (16/20 MHz): Offers extremely detailed skin assessment at different depths, ideal for analyzing skin structure, scars, and dermatological lesions.
  • Wireless Connectivity: Built-in Wi-Fi allows seamless connection to iOS, Android, or Windows devices, for real-time viewing and storage on smartphones, tablets, or PCs.
  • High Resolution: 192 elements and 64 channels provide crystal-clear imaging of skin structures.
  • Multiple Viewing Modes: Includes B, B/M, Color, PDI (Pulsed Doppler Imaging), and PW (Pulsed Wave Doppler) for comprehensive skin analysis.
  • Advanced Image Adjustments: Gain, focus, inverse harmonic pulse, and noise reduction functions ensure optimal imaging even under challenging conditions.
  • Needle Guidance: Supports in-plane and out-of-plane puncture guidance and automatic vascular measurement, useful in aesthetic treatments and complex dermatological diagnoses.
  • Image Storage and Sharing: Saves images and videos in JPG, MP4, PNG, DCM formats directly to mobile devices or tablets, for easy review and sharing.

Technical specifications

  • Scan mode - Linear electronic array scan
  • Frequency - 16 / 20MHz
  • Elements - 192 elements
  • Channels - 64 channels
  • Scanning depth - 10/20/30 / 40mm, adjustable
  • Field of view - 25
  • Screen - iOS / Android / Windows screen
  • Support system - iOS, Android, Windows
  • Display mode - B, b / m, color, pi, pw
  • Image adjustment - Gain, focus, harmonics of reverse pulse, noise reduction
  • Auxiliary puncture function - Plan drilling guide, off-floor drilling guide, automatic vascular measurement function
  • Grayscale image - 256 levels
  • Noise reduction - 0-1-2-3-4
  • Gain 30db-105db
  • Dynamic range - 40/50/60/70/80/90/100/110
  • Stock Images / Video - JPG, MP4, PNG, DCM, Save on Smarphones, Tablet PC
  • Measures - distance, area, obstetrics and more
  • Power - Built-in lithium battery, 2200mAh, wireless charging can prolong the working time define
  • Cineloop - Manual and automatic, reproduction frames 100/200/500/1000
  • WiFi Type - 802.11n / 2.4g / 5g double-band 450Mbps
  • Battery life - 1.5 hours
  • Size - 156mm × 60mm × 20mm
  • Net weight - 180 grams

The Wi-Fi Handheld Ultrasound is the ideal solution for those seeking portability, precision, and versatile diagnostics. With its high-frequency probe, ultra-high-resolution imaging, and universal wireless connectivity, it is a modern tool for dermatology and advanced aesthetic medicine, perfect for quick assessments, treatment monitoring, and accurate diagnosis.

Product Details

M.LTD990

Download

CE certificate

CE certificate

Download (875.46KB)
