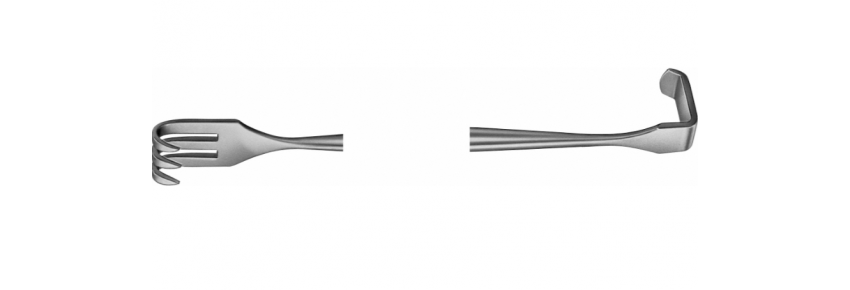

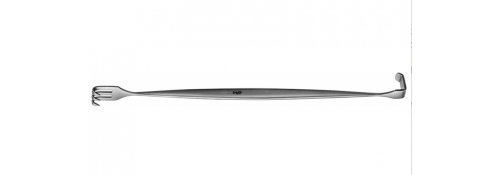

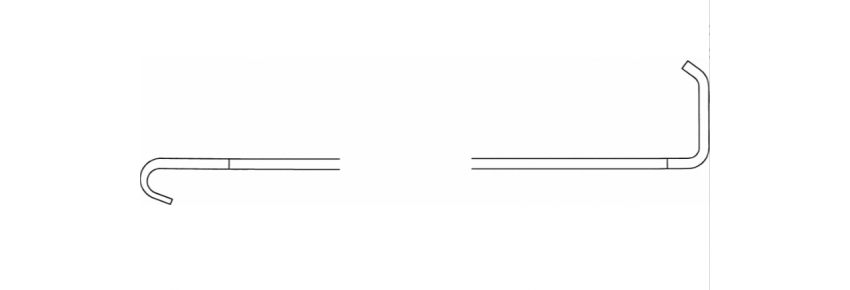

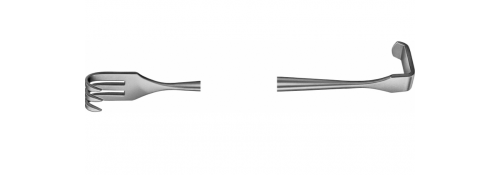

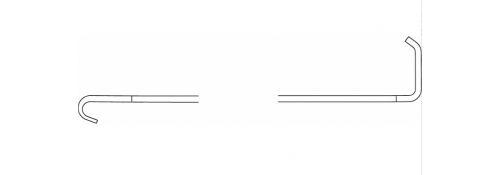

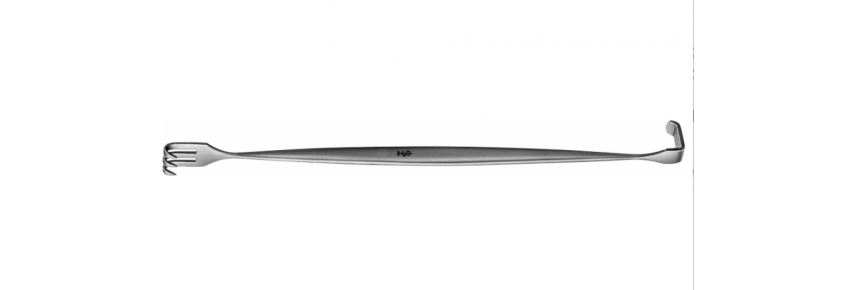

Kilner Double Point Retractor – 165 mm

KILNER RETRACTOR DOUBLE ENDED 3 PRONG BLADE/PRONG – 165 MM

The Kilner Retractor 165 mm Double Ended is a surgical instrument designed for controlled exposure of tissues during complex surgical procedures, with blades and prongs at both ends.

Technical features:

• Design: double ended
• Total length: 165 mm (6 1/2")
• Blades / prongs
• Jaws: 3 prongs
• Blade width: 9 mm / 5 mm
• Blade depth: 5 mm / 13 mm
• Tip profile: sharp/blunt
• Reusable instrument
• Direct UDI marking
• Latex-free
• Non-sterile

The double-ended design allows for adaptation to different surgical planes, while the multiple prongs ensure adequate tissue exposure without causing damage.

Areas of application:

ENT surgery, general and visceral surgery, hand and foot, plastic surgery, pediatrics, and maxillofacial.

Reconditioning and sterilization

Manual cleaning:

• Immersion with chemical disinfection for 15 minutes (e.g., B. Braun Stabimed 2% solution) with brushing.

Mechanical cleaning:

• Alkaline washing with thermal disinfection at 90°C for 5 minutes according to the thermal disinfector program.

Validated sterilization:

• Fractionated steam under vacuum at 134°C with a holding time of 5 minutes.
